Description

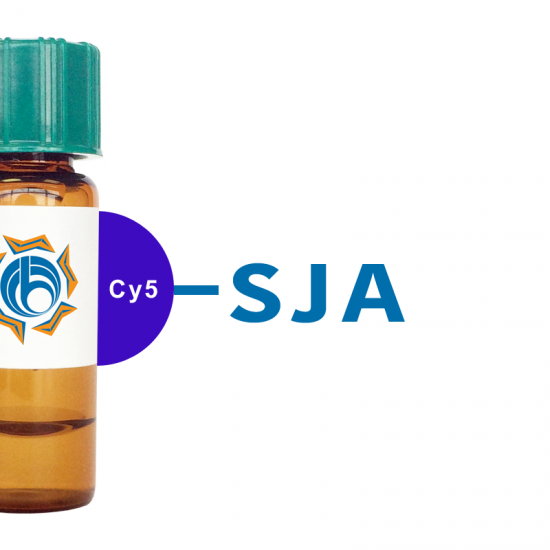

Cy5, when bound to Styphnolobium japonicum Lectin (SJA), can show the binding pattern of this lectin in cellular imaging and flow cytometry. The excitation wavelength required for Cy5 to fluoresce is high enough to avoid overlap with most other fluorochromes, making it useful for dual-labeling experiments. Because of this high excitation, there is typically less background from autofluorescence of biological specimens.

Storage Instruction: To prevent degradation and avoid repeated freeze-thaw cycles, aliquot your product into small, single-use volumes and store them at -20°C

Properties

Shelf life

2 years

Storage Temperature

-20°C

ECCN #

EAR99

Appearance color

Blue to purple

Appearance form

Liquid

Molecular Weight

133 kDa

Abbreviation (Lectins Only):

SJA

Source

Japanese Pagoda Seed

Blood Group Specificity

B>A

Carbohydrate Specificity

GalNAc

Storage Buffer

20 mM Tris-HCl pH 7.5, 50 mM NaCl, 1 mM CaCl2, 0.5 mM MnCl2, 5% Glycerol, 0.1% D-Trehalose Dihydrate, 0.01% Sodium Azide

Conjugate/Tag/Matrix

Cyanine 5 (Cy5)

Inhibitory Carbohydrate

GalNAc

Fluorescence

Far red

Divalent Ions

Ca++, Mn++

Excitation

647 nm

Mitogenic Activity

Emission

665 nm
